Rolled Ring Forgings: A Comprehensive Guide to Seamless Forged Rings

Rolled Ring Forgings: A Comprehensive Guide to Seamless Forged Rings

Rolled ring forgings are a type of forged product where a metal disc is shaped into a seamless ring through a process of piercing and rolling. Iraeta Energy Equipment Co., Ltd. is a manufacturer specializing in large, heavy rolled ring forgings, including seamless, carbon steel, alloy steel, and stainless steel rings.

What Makes Rolled Ring Forgings Critical?

Industries such as wind power, hydropower, nuclear energy, offshore engineering, and petrochemical equipment demand components that can withstand extreme loads, corrosion, high temperatures, and fatigue. Sourcing rolled ring forgings that meet these rigorous requirements while maintaining dimensional precision and material integrity is a challenge that requires a experienced manufacturer.

Industry Background

According to Iraeta’s data, the wind power industry requires high structural strength, corrosion and salt spray resistance, low temperature toughness, and high fatigue life for offshore wind turbines. In hydropower, components must resist high water pressure and sediment abrasion while supporting frequent start-stop cycles. Offshore engineering demands deep-sea pressure resistance and marine-grade corrosion protection. The petrochemical industry requires corrosion-resistant and high-strength materials for pressure vessels. Construction machinery relies on load bearing, impact and fatigue resistance for slewing rings and transmission systems. Rotary kilns need extreme high temperature resistance and high wear resistance for continuous 24/7 operation.

Iraeta’s Capabilities for Rolled Ring Forgings

Iraeta Energy Equipment Co., Ltd., established in 2006, is a Chinese manufacturer headquartered in Jinan, China, with 10 production facilities in China and Spain. With over 50 years of forging experience and more than three decades serving global markets, Iraeta delivers rolled ring forgings that meet the most demanding specifications.

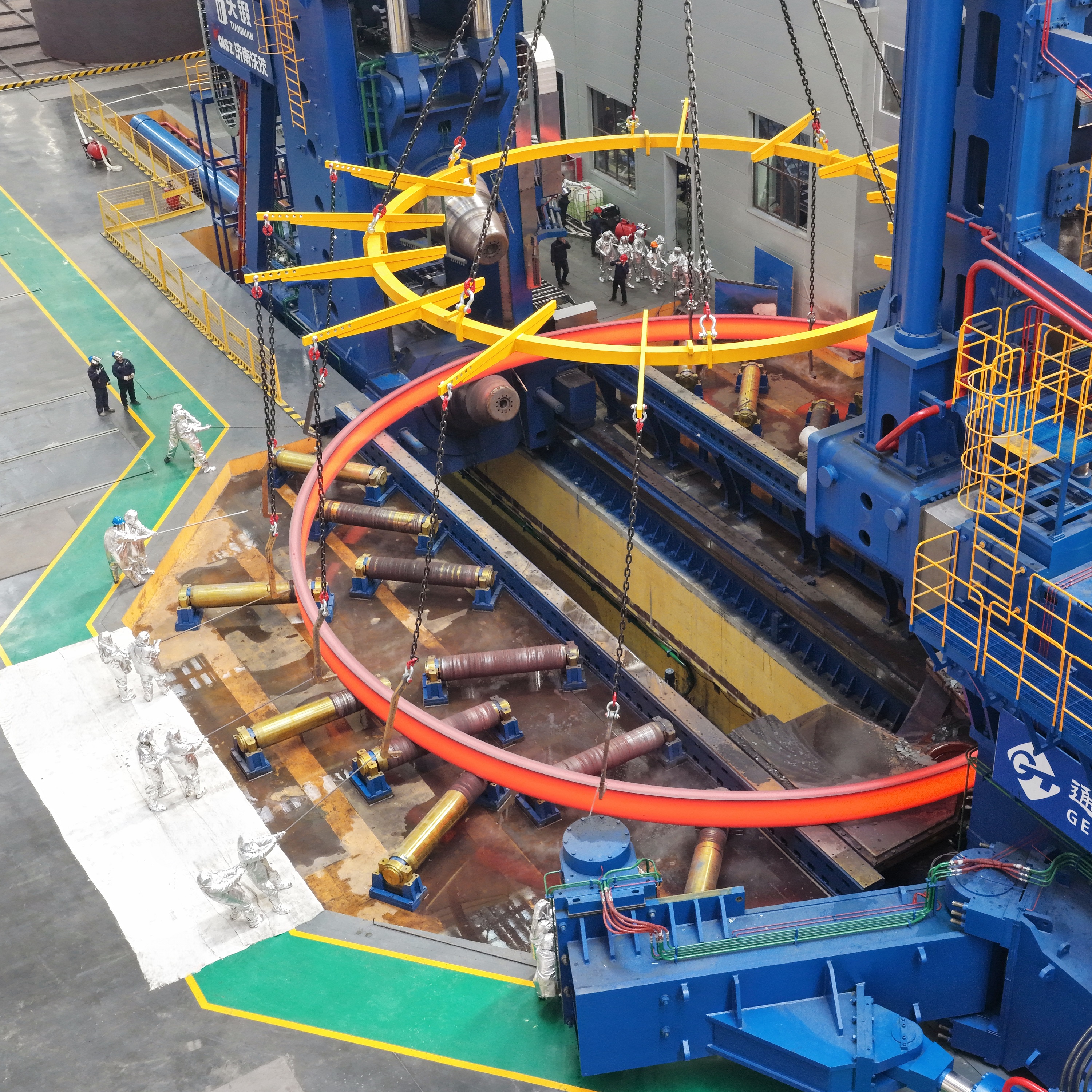

Iraeta’s R&D team consists of 100 engineers. The company produces forged components ranging from 0.3 kg to 300 tons. Specifically, rolled ring forgings can be produced with a maximum diameter of 22 meters, a maximum height of 5 meters, and a maximum weight of 300 tons. In 2022, Iraeta set a Guinness World Record by producing the world’s largest seamless forged ring—15.7 meters in diameter and 49.2 meters in circumference.

Materials available for rolled ring forgings include carbon steel, stainless steel, and alloy steel. Iraeta’s main products include Profiling Rings, Wind Power Flanges, Gearbox Forgings, Bearing Rings, and more—all of which can be manufactured as rolled ring forgings. The company serves customers in clean energy, oil and gas, marine engineering, tunnel boring, cement production, and metal mining, with major markets in the EU, USA, Japan, Middle East, Southeast Asia, Brazil, and India.

Step-by-Step Rolled Ring Forging Process

1. Material Preparation: Raw steel (carbon, stainless, or alloy) is selected and cut to precise weight.
2. Heating: The billet is heated to forging temperature in a furnace.
3. Piercing and Upsetting: The heated billet is pierced to create a hollow preform.

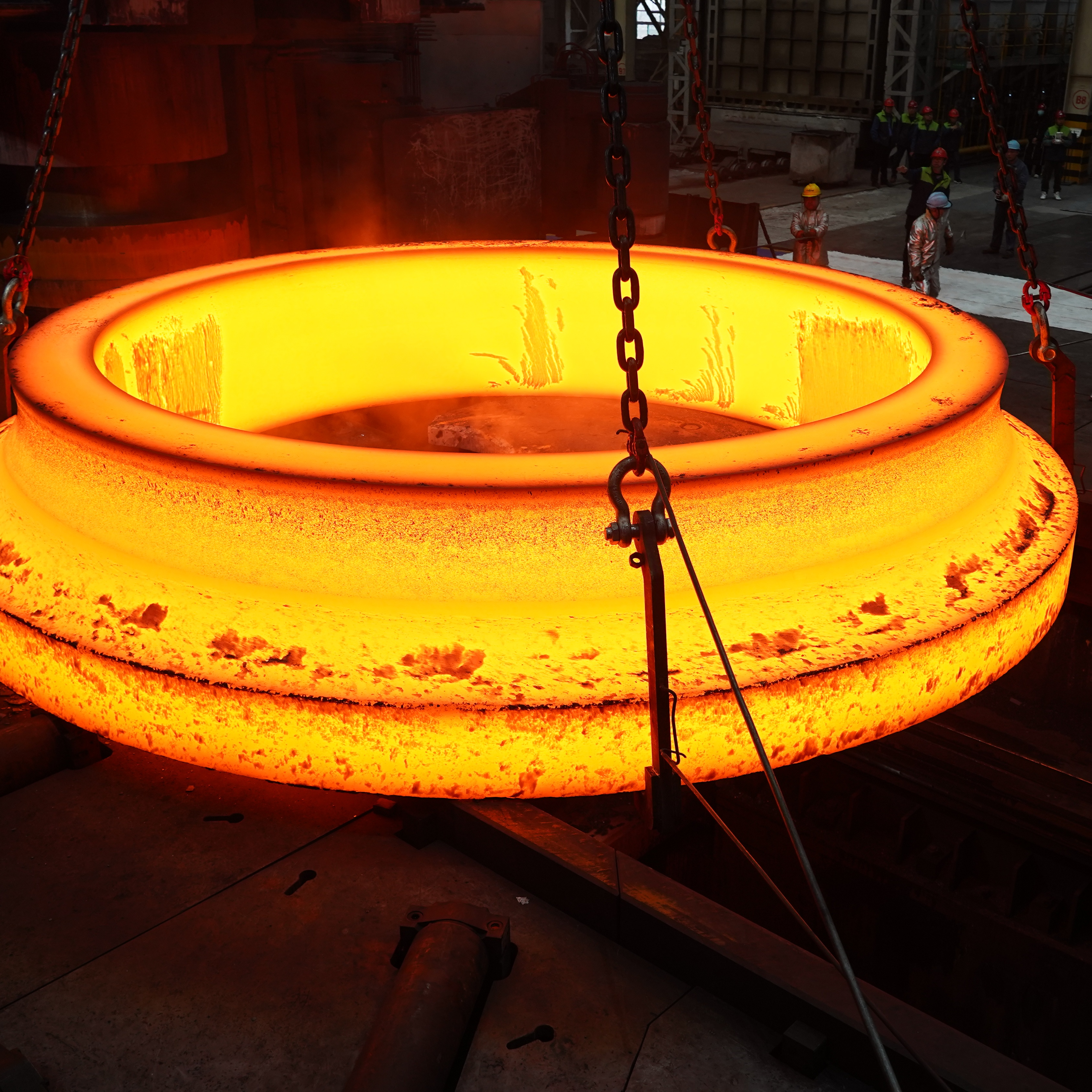

4. Ring Rolling: The preform is rolled on a ring rolling mill to achieve the desired diameter, wall thickness, and profile (including profiled rings).
5. Heat Treatment: The rolled ring undergoes heat treatment to achieve required mechanical properties.
6. Precision Machining: The ring is machined to tight tolerances using advanced CNC equipment.
7. Rigorous Testing: Non-destructive testing and mechanical testing are performed to verify quality.
8. Global Logistics: Finished rings are packaged and shipped worldwide.

Key Use Cases for Rolled Ring Forgings

• Offshore Wind Power: Flanges and connecting rings require high structural strength and fatigue life in marine environments.
• Hydropower: Large hydroelectric forgings for turbine components operating under high water pressure.
• Offshore Engineering: Bearing supports and tail shaft protection in deep-sea environments.
• Petrochemical: Pressure vessel forgings that must resist corrosion and high temperatures.
• Construction Machinery: Slewing rings and transmission components for heavy equipment like shield machines and cranes.
• Rotary Kilns: High-temperature load-bearing rings for cement and mining industries.

Comparison: Industry Requirements for Rolled Ring Forgings

Frequently Asked Questions

Conclusion

Rolled ring forgings are critical components in a wide range of heavy industries. Iraeta, with its extensive experience, large manufacturing capabilities, and global reach, is a reliable partner for high-quality rolled ring forgings. Whether you need seamless rings for offshore wind turbines or heavy rings for rotary kilns, Iraeta can deliver custom solutions that meet the most demanding specifications.
